ULTRA FIRE PROTECTION SYSTEMS
Dept 7970 196 High Road, Wood Green, N22 8HH, London, United Kingtom
info@ultrafire-uk.com

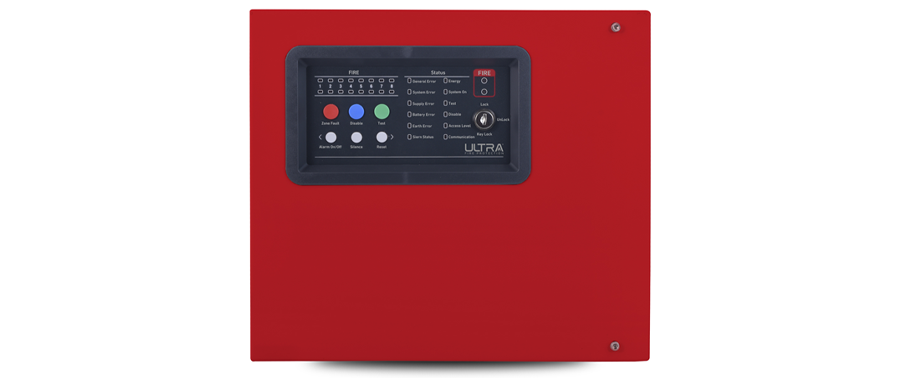

The UCP-104 has 4 zones and can accommodate up to 32 conventional detectors and manual call points, with a maximum of four zones.
Coming with a robust metal body design, simple installation, and great performance
FEATURES & BENEFITS
✓ EN 54-2 and EN 54-4 Certified
✓ 4 Zone Capacity with Full Monitoring
✓ Each zone can have up to 32 conventional detectors
✓ Indicator Panel that is simple to use and manage
✓ Each zone has its own fire and error LEDs
✓ Extending battery life with smart battery charging advanced feature.
✓ Intelligent start feature that prevents starting directly from battery
✓ Individually disabling for each zone
✓ Monitoring Siren Outputs and Zone Inputs for any fault connections with EOL Resistances
✓ Two 500mA Siren Outputs for a total of 50 sounder connections (if ULTRA UCSF-116 sounders are used)
✓ 24VDC 500mA external supply output with automatic fuse (AUX)
✓ 1x Fire Relay (NC/NO) (Button alarm, detector alarm, etc.)
✓ 1 x Error Relay (NC/NO) (Energy, Zone, and Battery Outage…etc)
✓ Unauthorized access is prevented by using a key lock
✓ SMPS (Switch Mode Power Supply): (27.6VDC SMPS 1.5Ah automatic fuse)
The UCP-108 supports 8 zones and can accommodate up to 32 conventional detectors and manual call points, with a maximum of eight zones.
Coming with a robust metal body design, simple installation, and great performance. The panel complies with all European Standards' technical requirements
FEATURES & BENEFITS
✓ Each zone can have up to 32 conventional detectors
✓ Indicator Panel that is simple to use and manage
✓ Each zone has its own fire and error LEDs
✓ Extending battery life with smart battery charging advanced feature.
✓ Intelligent start feature that prevents starting directly from battery
✓ Individually disabling for each zone
✓ Monitoring Siren Outputs and Zone Inputs for any faulty connections with EOL Resistances
✓ Two 500mA Siren Outputs for a total of 50 sounder connections (if ULTRA UCSF-116 sounders are used)
✓ 24VDC 500mA external supply output with automatic fuse (AUX)
✓ 1x Fire Relay (NC/NO) (Button alarm, detector alarm, etc.)
✓ 1 x Error Relay (NC/NO) (Energy, Zone, and Battery Outage…etc)
✓ Unauthorized access is prevented by using a key lock
✓ SMPS (Switch Mode Power Supply): (27.6VDC SMPS 1.5Ah automatic fuse)
